BTF-LIGHTING Wireless Bluetooth Controller SP105E iOS/Android APP for WS2811 WS2812B WS2815 WS2813 WS2801 SK6812 WS2815 SK9822 APA102 etc LED Strip Pixel Fairy String Module Panel Light

Description

Price: $16.99
(as of Feb 08, 2025 15:53:21 UTC – Details)

Product Description

Parameter

●Product weight: 40g

●Product size: 85mm*45mm*22mm

●Remote distance: About 20 meters

●Model: SP105E Bluetooth Magic Color Controller

●Working voltage: DC5V-24V (The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your led lights. )

If your led light is 5V,please use 5V power supply. Never use 12V or 24V power. Otherwise, the led lights will be damaged.

Precautions

●To control WS2812B ， WS2813 or WS2815 LED strip, please choose WS2811 and GRB on the setting page.

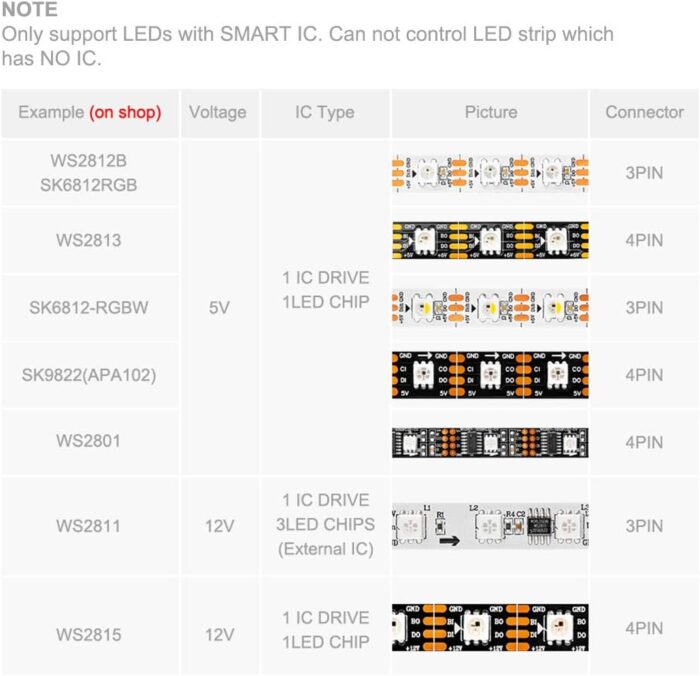

●The controller only supports LED lights with smart IC. It cannot support ordinary RGB/RGBW LED strip without IC.

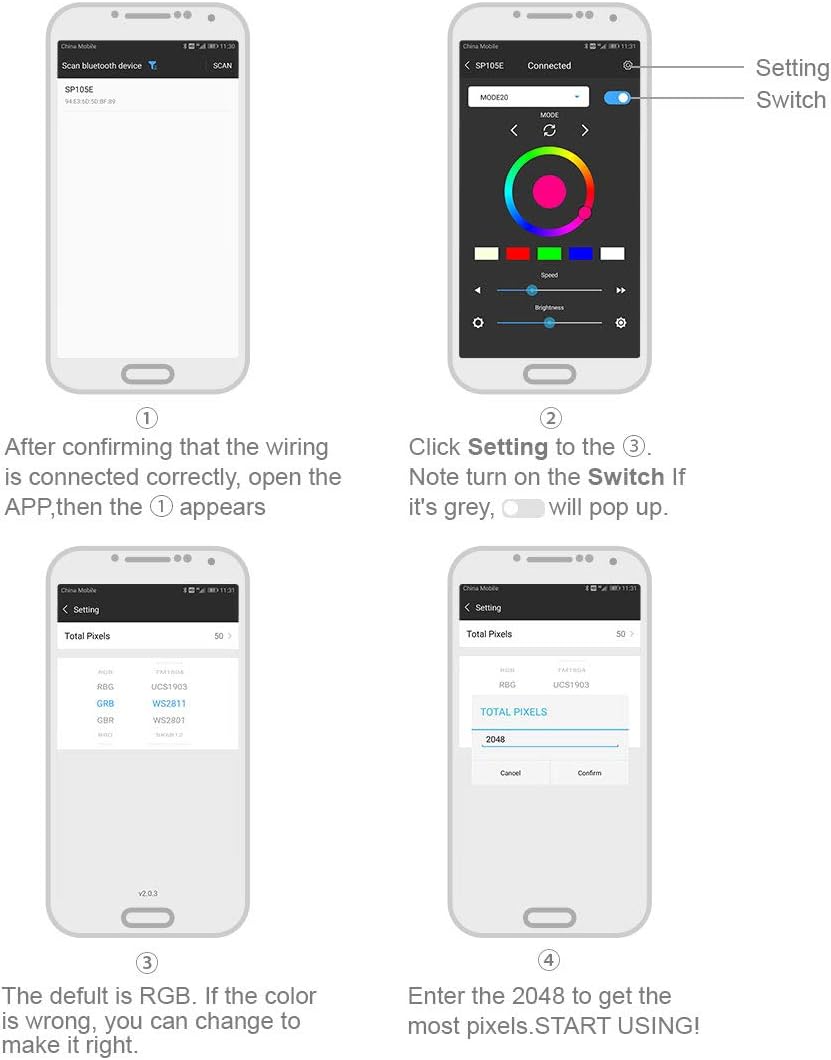

●Search “Magic-LED” or scanning the QR code on the operating instructions to download and install the App.

● Please use a power supply not a battery to power the controller. The output power of power supply must be more than the max power of led light. For example, if the work voltage and max amp of your led light is 5V 10A 50W, power supply output must be 5V 10A 50W at least. Otherwise, it will work smoothly.

●If the color is wrong, for example, you choose the red, but the color of the light strip is green, you need to choose a different settings, such as RGB, RBG, GRB, GBR, BGR or BRG.

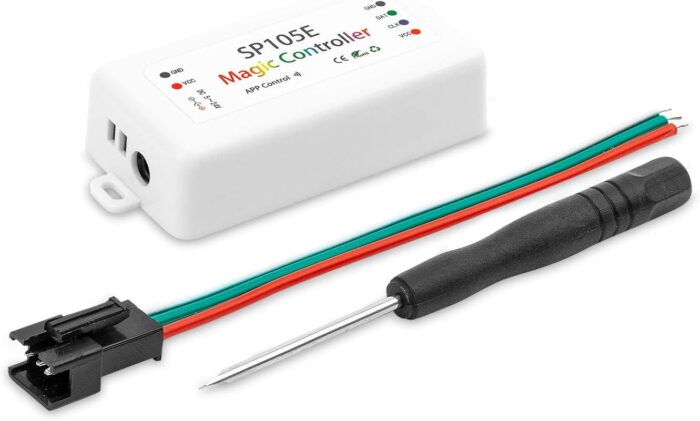

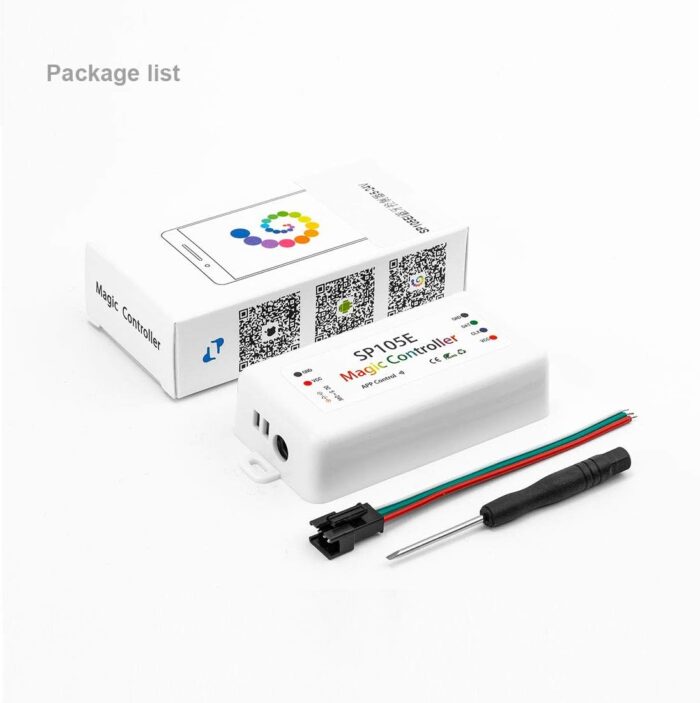

Package:

●1x SP105E Bluetooth LED controller

●1x 3pin male SM connector

●1x Mini screwdriver

●1x User manual

Can not work?

●Please check output voltage and amp of your power supply and confirm whether it can match controller and led lights.

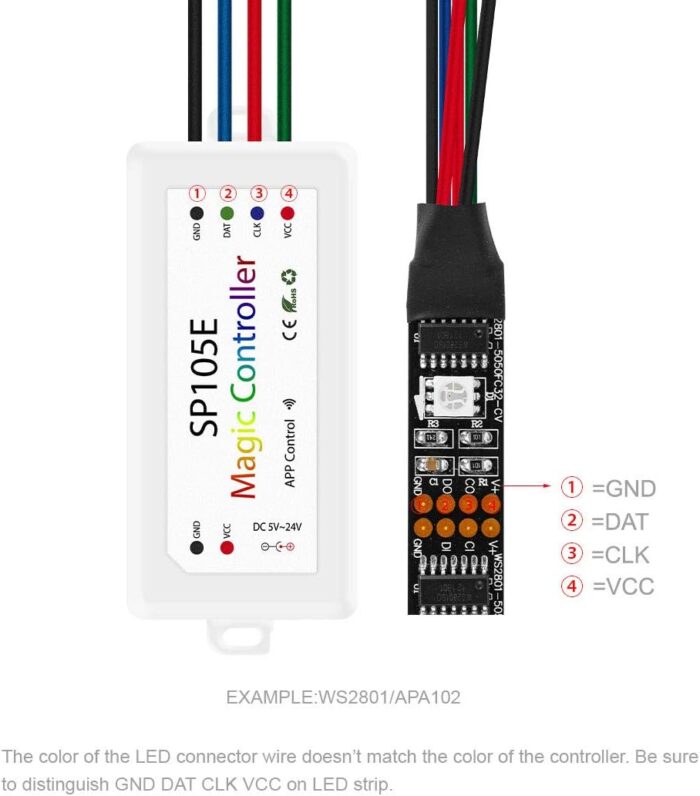

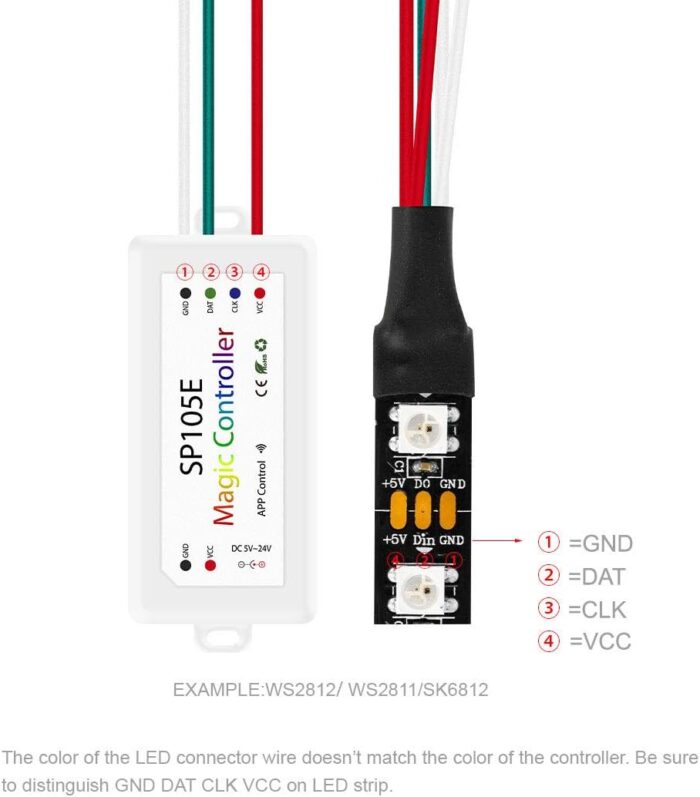

● If the power supply, controller and led lights can be compatible with each other well, please connect them and set up again as the last product picture shows.

● Please set enough total pixels number, correct RGB order and IC type. Otherwise they cannot work smoothly.

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 1.38 x 3.15 x 0.67 inches; 1.4 ounces
Item model number ‏ : ‎ SP107E
Date First Available ‏ : ‎ March 30, 2017
Manufacturer ‏ : ‎ BTF-LIGHTING Technology Co., Limited
ASIN ‏ : ‎ B06XXCC17Y
Country of Origin ‏ : ‎ China

WIDE COMPATIBILITY. Support almost Smart LED IC ,one-wire or two-wire LED driver IC, such as FCOB RGB WS2811 IC, WS2811 SMD,WS2812B,WS2813,WS2814,WS2815, WS2801, SK6812, SK6812-RGBW, LPD6803, LPD8806, APA102, APA105, TM1804, TM1814, TM1914, TM1913, P9813, INK1003, UCS1903, DMX512
Convenient. IOS and Android APP control via Bluetooth 4.0 or later version. Long control distance, convenient to use. Support IOS 8.0 and Android 4.4 or later version. Your smart Phone should support Bluetooth 4.0 or later version.
Rich color modes. Come with 200 kinds of color change modes, auto mode and static color mode, which are vivid and beautiful. Save user setting automatically when power off. Brightness is adjustable.

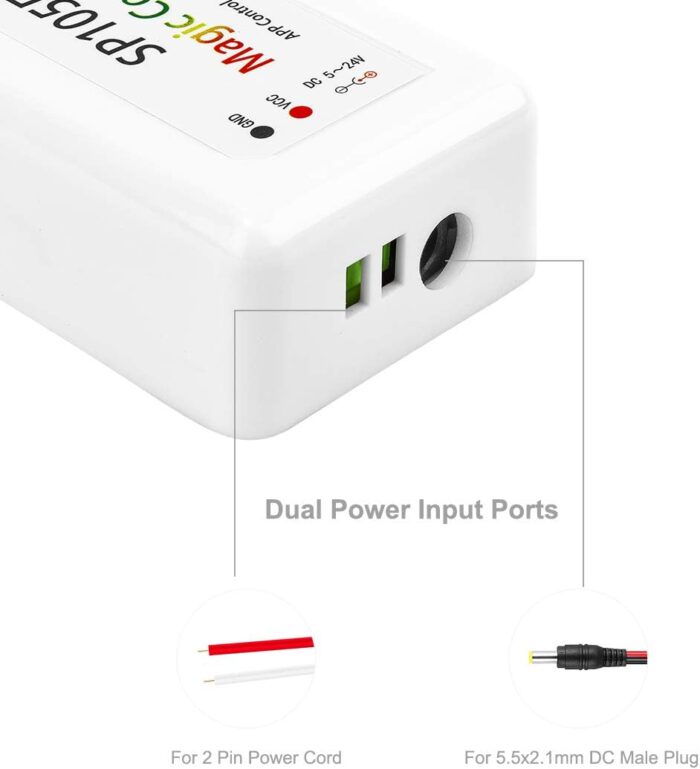

Safe. DC5V DC12V DC24V wide working voltage, preventing reverse connection of power supply, protecting LED light and controller very well. DC5V WS2812B LED strip, please only use DC5V power adapter. 5.5mmx2.1mm DC power jack
Warranty . If it does’t work , please contact us , we will help you to solve the problem.May be you will connect the wrong wire or the wire is loose .
Color calibration. When the app color is inconsistent with the color of the LED strip, where green is blue and blue is green ，You can use the APP to calibrate the colors to make them consistent.6 color sequences, RGB, RBG, BRG, BGR, GRB, GBR, select one of them for calibration
Insufficient power supply will cause the controller to lose control, the color of the LED strip is frozen, Bluetooth is disconnected . Please note : When you Light up 1 color（red or green or blue or pure white) 0.1W/LED . 2 colors (red+green) 0.2W/LED , 3 colors (red+green+blue=mixed white) 0.3W/LED.If you don’t know which power supply can be used for your LED project, you can email us
It is not recommended to light up the full brightness white light for a long time, because the main function of the addressable RGB IC light strip or fairy string is chasing rainbow effects .
