BTF-LIGHTING WS2812B 100PCS 5050SMD Individually Addressable Smart RGB LED Pixel for Arduino Single 1-led RGB LED Module Pixels Color Light Black PCB Only DC5V Christmas(No Adapter or Controller)

Description

Price: $14.99
(as of Feb 09, 2025 06:23:49 UTC – Details)

Product Description

Product Details

Parameter Table

LED Type WS2812B RGB LED Pixel IC type WS2812B IC FPCB board color Black/White Input Voltage DC5V Led Quantity 100pcs/200pcs Color order G R B（NOT RGB） Waterproof level IP30 Lamp Bead Specification 5050SMD Operating Temperature -4℉~104℉（-20℃~+40℃ ） Color Full color 24-bit Recommended power supply DC5V6A (Power supply or controller is not included) Wave Length(nm) Red（620-630） ; Green（515-530） ; Blue（465-475） Notice You can only connect them by SOLDERING

1 Process Comparison

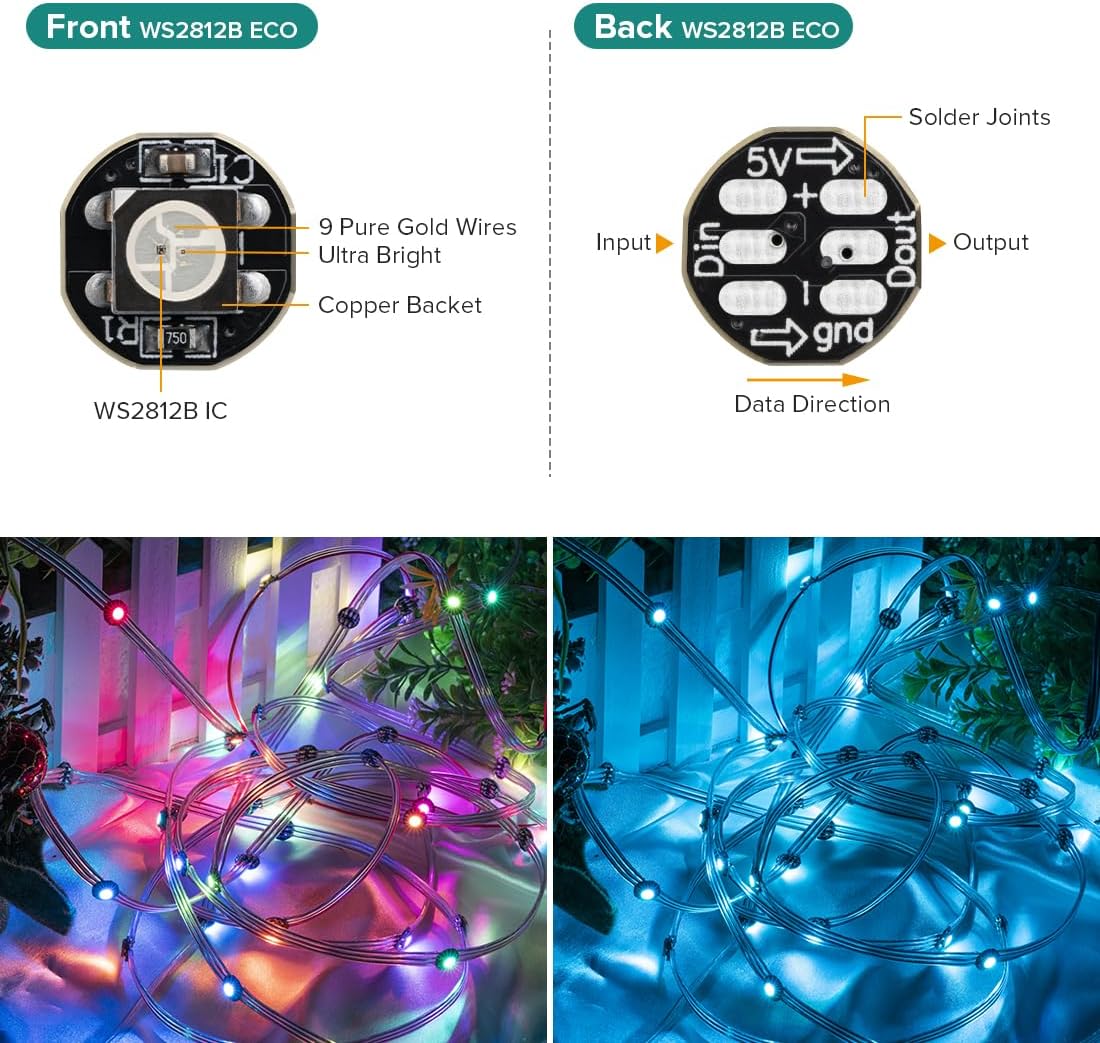

2 LED Data

3 DIY

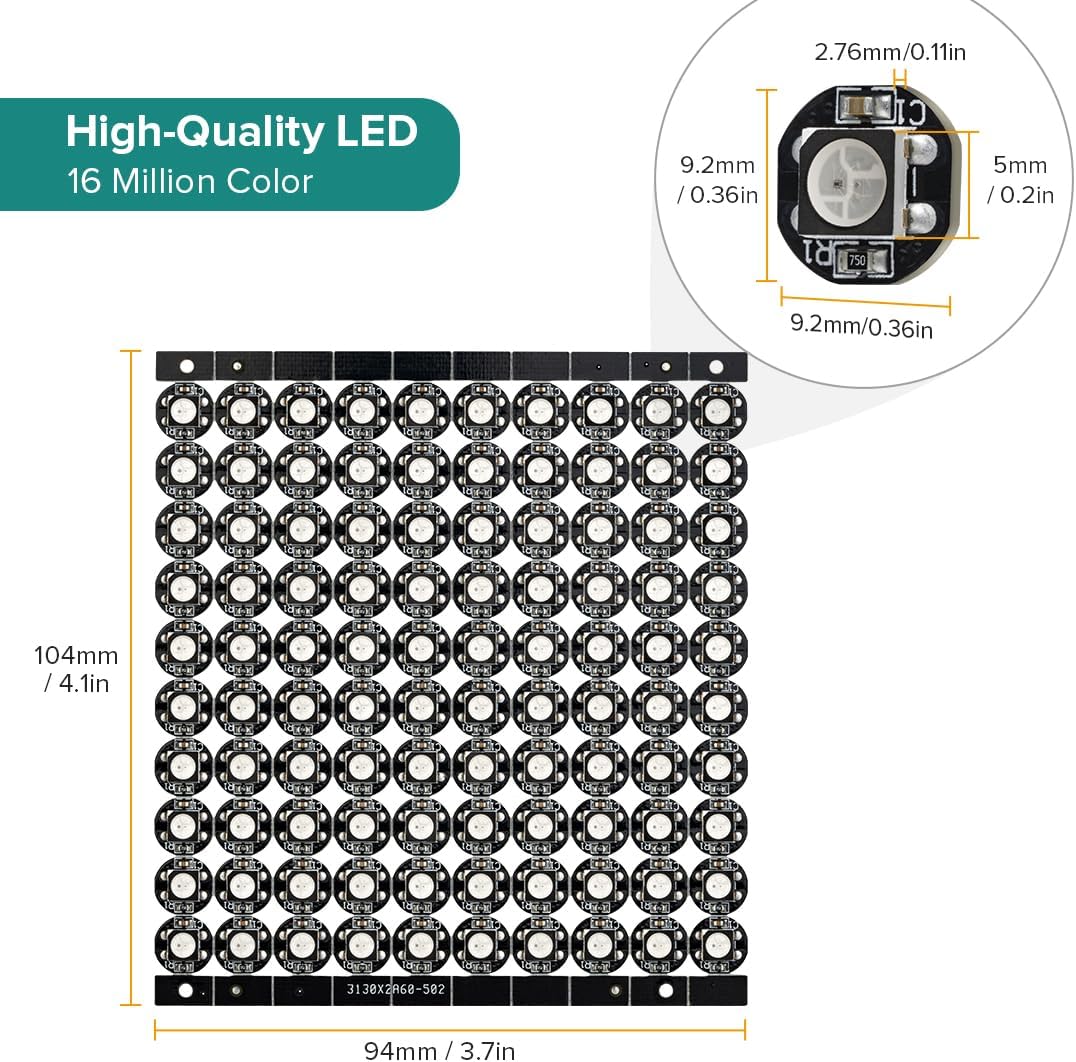

4 High Quality LED

5 Chasing Effect

Choose the suitable product for yourself

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.7 out of 5 stars

456

4.7 out of 5 stars

456

4.5 out of 5 stars

437

4.4 out of 5 stars

452

4.5 out of 5 stars

500

4.5 out of 5 stars

468

Price

$14.99$14.99

$20.99$20.99

$16.99$16.99

$51.99$51.99

$19.99$19.99

$43.99$43.99

Manufacture Technique

SMD(Surface Mounted Devices)

SMD(Surface Mounted Devices)

SMD(Surface Mounted Devices)

SMD(Surface Mounted Devices)

SMD(Surface Mounted Devices)

SMD(Surface Mounted Devices)

IC Type

WS2812B IC

SK6812 IC

WS2812B IC

WS2812B IC

WS2812B IC

SK6812 IC

Color

RGB

RGB+Pure White

RGB

RGB

RGB

RGB+Pure White

Working Voltage

DC5V

DC5V

DC5V

DC5V

DC5V

DC5V

FPCB Board Color

Black/White

White

Black

Black

Black

Black/White

LED Width

IP30

IP30

IP30

IP30

IP30/IP65/IP67

IP30/IP65/IP67

Dual-Signal

✘

✘

✘

✘

✘

✘

Connectors

3pin

3pin

3pin

3pin

3pin

3pin

BT Controller

SP611E/SP638E

SP617E/SP639E

SP611E/SP638E

SP611E/SP638E

SP611E/SP638E

SP617E/SP639E

WIFI Controller

DR03W

DR04W

DR03W

DR03W

DR03W

DR04W

RF Controller

RB3+SP630E

RB3+SP630E

RB3+SP630E

RB3+SP630E

RB3+SP630E

RB3+SP630E

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 4.72 x 3.94 x 0.59 inches; 3.53 ounces
Item model number ‏ : ‎ WS2812BLEDB-B100pcs
Date First Available ‏ : ‎ March 23, 2016
Manufacturer ‏ : ‎ BTF-LIGHTING Technology Co., Limited
ASIN ‏ : ‎ B01DC0J3UM
Country of Origin ‏ : ‎ China

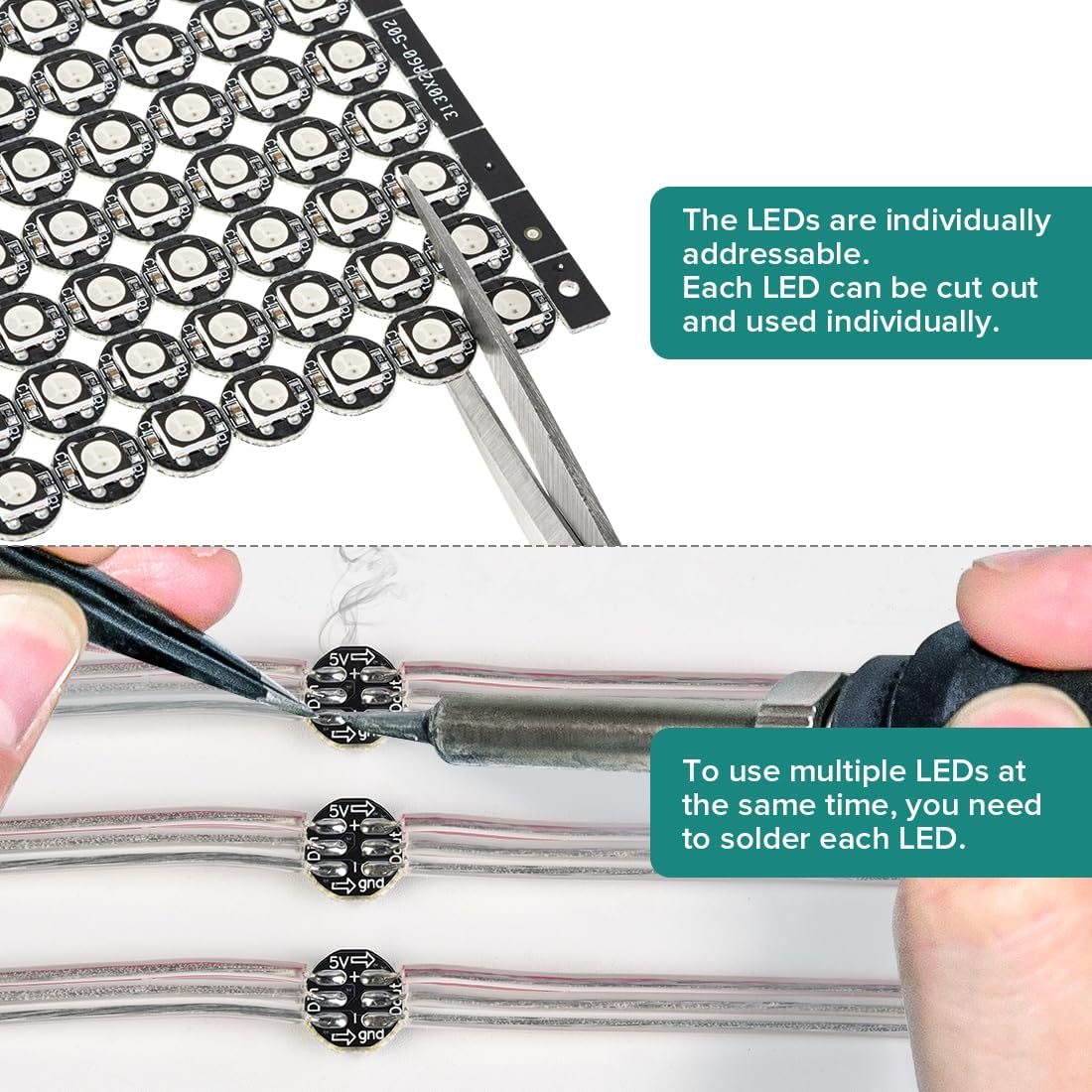

Individually Addressable. Dream full color Programmable LED Strip, WS2812B led, WS2812B IC Built in 5050SMD. 256 brightness display and 24-bit color display. Static effect, Chasing effect, special effect etc. It comes with 3pin JST-SM connectors on both ends for easy installation and separated power/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

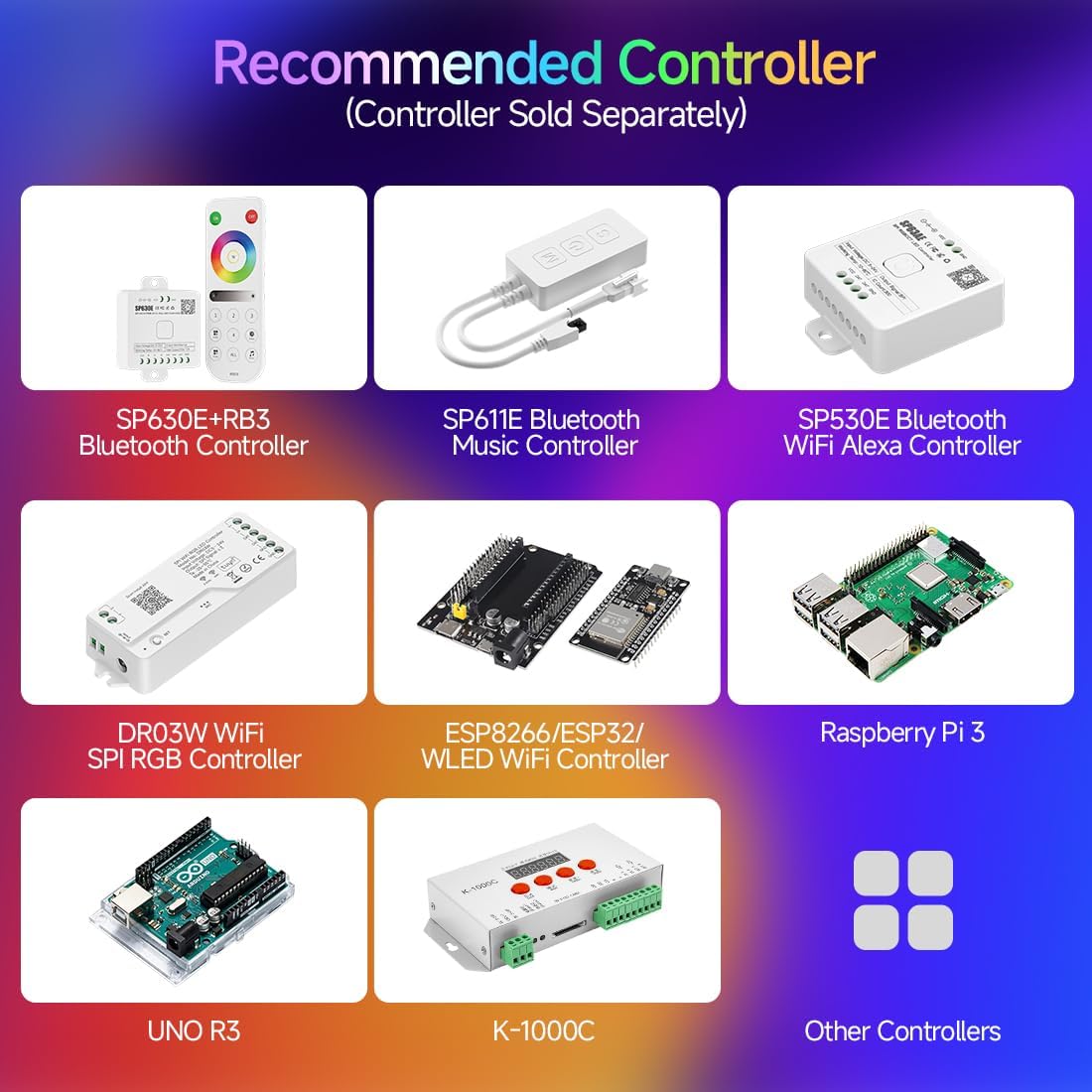

Amazing DIY Play. The addressable IC chip is built-in the 5050SMD. Each pixel can have its own color and brightness as your wish. Compatible with WLED, K-1000C, Rasp Pi, UNO R3, ESP8266, ESP32 etc Programmable Controllers. Support RB3+SP630E, SP611E, SP608E, SP602E etc Bluetooth music Controllers, SP530E , DR03W, SP511E etc smart 2.4GHz Wi-Fi Alexa music controllers.
Only Support DC5V power supply. Never use DC12V or DC24V power supply. Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software. Power adapter and controller need to be purchased separately.
Widely Application. Making led screen DIY , advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration,It has adhesive glue on the back, so you can stick it to the wall or other items conveniently as you like.

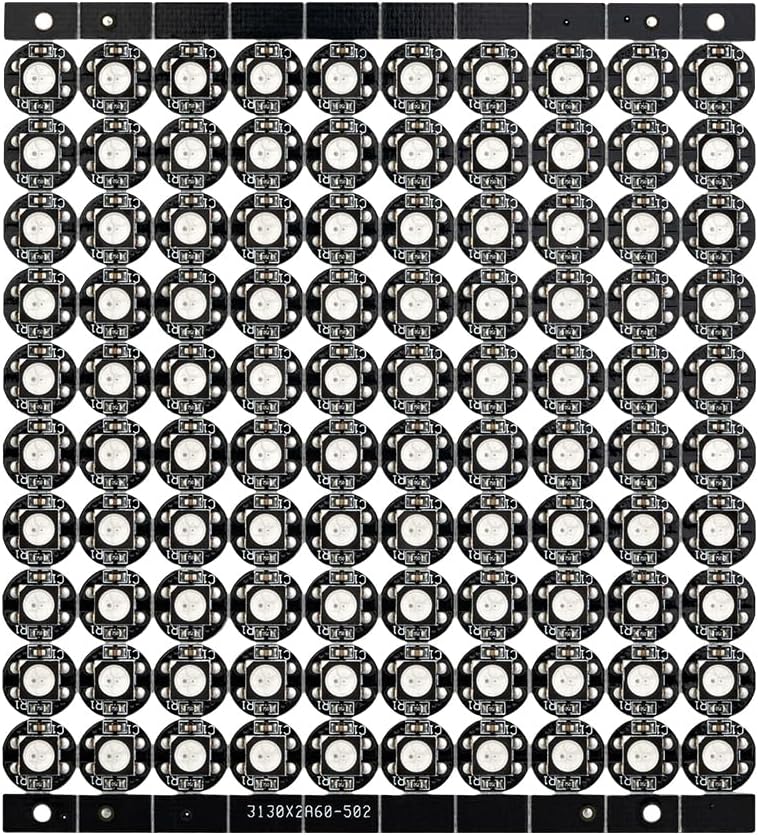

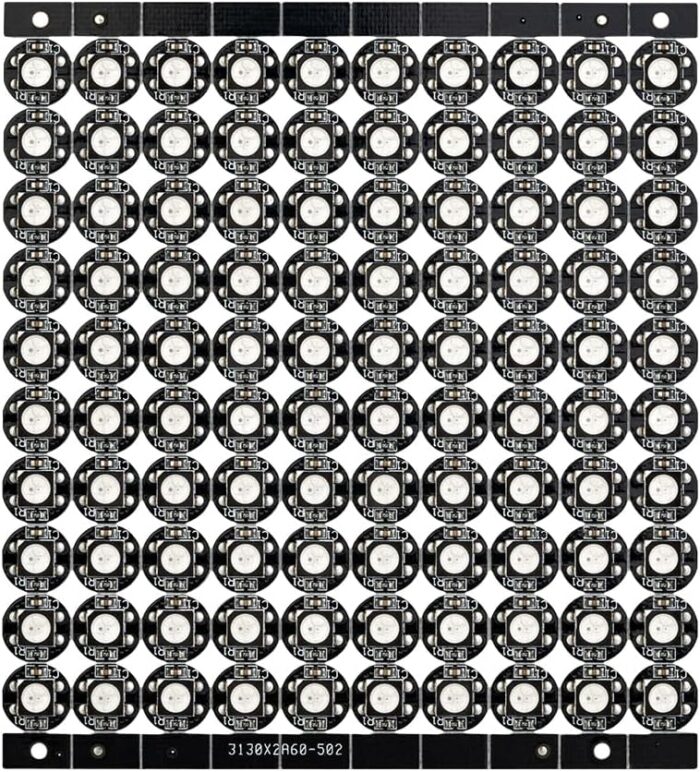

It’s put on a small PCB board that allows you to solder it in whatever configuration you want.
